• 3T tube ice machine

    3T tube ice machine

    Running power: 9.375 KW.

    Ice temperature: Minus 5℃.

    Ice quality: Transparent and crystal.

    Ice diameter: 22mm, 29mm, 35mm or else.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice daily productive capacity: 3000 kgs of ice tubes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

  • 5T tube ice machine

    5T tube ice machine

    Running power: 15.625 KW.

    Ice temperature: Minus 5℃.

    Ice quality: Transparent and crystal.

    Ice diameter: 22mm, 29mm, 35mm or else.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice daily productive capacity: 5000 kgs of ice tubes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

  • 10T Tube ice machine

    10T Tube ice machine

    Running power: 31.25 KW.

    Ice temperature: Minus 5℃.

    Ice quality: Transparent and crystal.

    Ice diameter: 22mm, 29mm, 35mm or else.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice daily productive capacity: 10,000 kgs of ice tubes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

  • 2T flake ice machine

    2T flake ice machine

    Running power: 6.25 KW.

    Ice thickness: 1.8-2.2mm.

    Ice temperature: Minus 5℃.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice bin’s storage capacity: 500kgs of ice flakes or customized.

    Ice daily productive capacity: 2000 kgs of ice flakes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

  • 3T flake ice machine

    3T flake ice machine

    Running power: 9.375 KW.

    Ice thickness: 1.8-2.2mm.

    Ice temperature: Minus 5℃.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice bin’s storage capacity: 1500 kgs of ice flakes or customized.

    Ice daily productive capacity: 3000 kgs of ice flakes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

  • 5T flake ice machine

    5T flake ice machine

    Running power: 15.625 KW.

    Ice thickness: 1.8-2.2mm.

    Ice temperature: Minus 5℃.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice bin’s storage capacity: 2500 kgs of ice flakes or customized.

    Ice daily productive capacity: 5000 kgs of ice flakes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

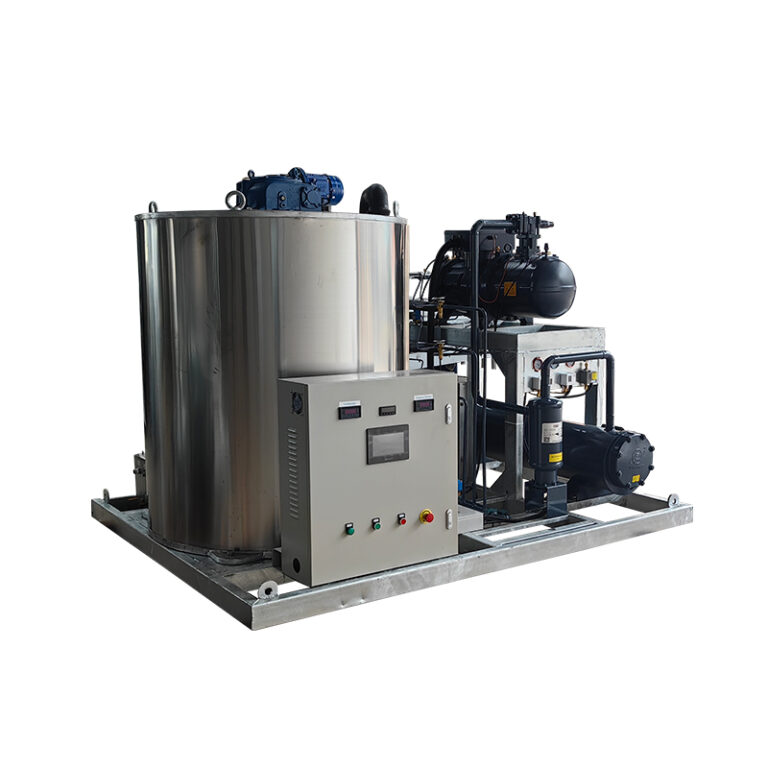

  • 10T flake ice machine

    10T flake ice machine

    Running power: 15.625 KW.

    Ice thickness: 1.8-2.2mm.

    Ice temperature: Minus 5℃.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice bin’s storage capacity: 2500 kgs of ice flakes or customized.

    Ice daily productive capacity: 5000 kgs of ice flakes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

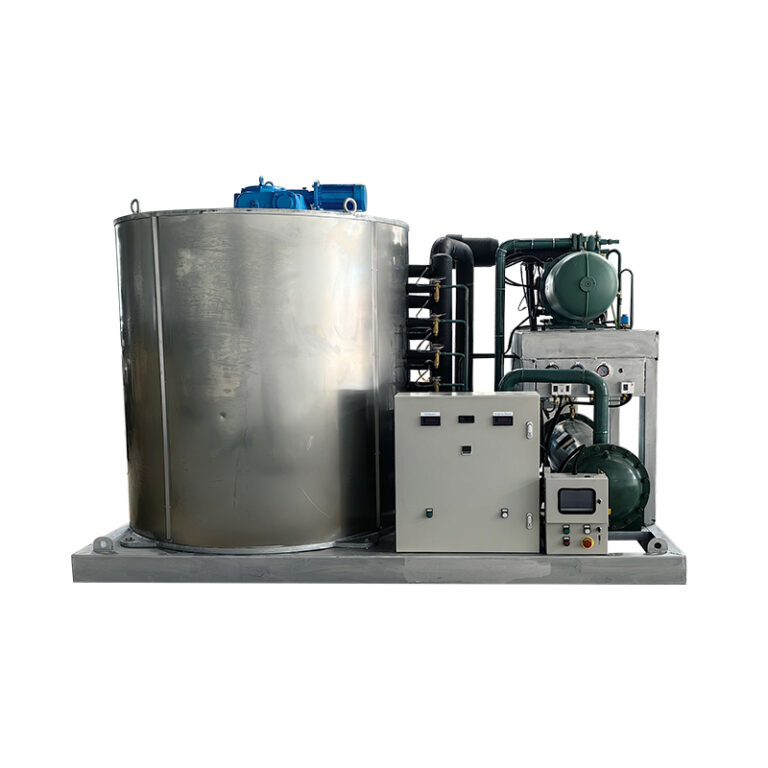

  • 20T flake ice machine

    20T flake ice machine

    Running power: 62.5 KW.

    Ice thickness: 1.8-2.2mm.

    Ice temperature: Minus 5℃.

    Refrigerant: R404a, R448a, R449a, or else.

    Power supply: 3 phase industrial power supply.

    Ice bin’s storage capacity: 10,000 kgs of ice flakes or customized.

    Ice daily productive capacity: 20,000 kgs of ice flakes per 24 hours.

    Standard working condition: 30℃ ambient and 20℃ water temperature.

    Power consumption: 75 KWH of electricity for making every 1 ton of ice flakes.

  • 300kg/day flake ice machine + 150kg ice storage bin.

    300kg/day flake ice machine + 150kg ice storage bin.

    The machine has plug-and-play design. It is ready for ice making after simple connection with water and power. Ice comes out within 5 minutes after user press the start button.

    All jobs of ice making are done full automatically under the control of PLC.

    The system will protect itself away from water shortage/ ice bin full/ unstable power supply/ extreme high or cold ambient temperature / and other kinds of failures.

    The designed evaporating temperature is minus 20C, which guarantee very good quality ice flakes. Well-frozen dry and thick ice flakes come out from the machine.

    The 300kg/day flake ice machine’s ice bin can storage 150lgs of ice flakes, which are more then the ice made in night time. So the user can leave the machine and make it work by itself in night time. Ice bin will be filled with a lot of ice when the user open the door of the ice bin in the morning.

    80% of the components on the ice machine are international famous brands to guarantee good working performance and long service time.

  • 1000kg/day flake ice machine + 400kg ice storage bin.

    1000kg/day flake ice machine + 400kg ice storage bin.

    The machine has plug-and-play design. It is ready for ice making after simple connection with water and power. Ice comes out within 5 minutes after user press the start button. All jobs of ice making are done full automatically under the control of PLC. The system will protect itself away from water shortage/ ice bin full/ unstable power supply/ extreme high or cold ambient temperature / and other kinds of failures. The designed evaporating temperature is minus 20C, which guarantee very go...
  • Flake ice evaporator

    Flake ice evaporator

    Videos to show flake ice evaporators we made before. Herbin Ice Systems is one of the biggest flake ice evaporators manufacturer in China. We manufacture and sell flake ice evaporators to other Chinese ice machine companies and to overseas market. 60% of Chinese flake ice machines are equipped with our flake ice evaporators. Our flake ice evaporators are also widely used around the world, such as USA/Mexico/Brazil/Greece/South Africa/ and so on.   The flake ice evaporators are ready ...
  • 500kg/day flake ice machine + 300kg ice storage bin.

    500kg/day flake ice machine + 300kg ice storage bin.

    The machine has plug-and-play design. It is ready for ice making after simple connection with water and power. Ice comes out within 5 minutes after user press the start button. All jobs of ice making are done full automatically under the control of PLC. The system will protect itself away from water shortage/ ice bin full/ unstable power supply/ extreme high or cold ambient temperature / and other kinds of failures. The designed evaporating temperature is minus 20C, which guarantee very goo...
